Reference Designs
Fully documented reference designs showcasing complete tile-based systems.
Piezo Haptic Ring
Wireless wearable · Haptics · BLE 5.4

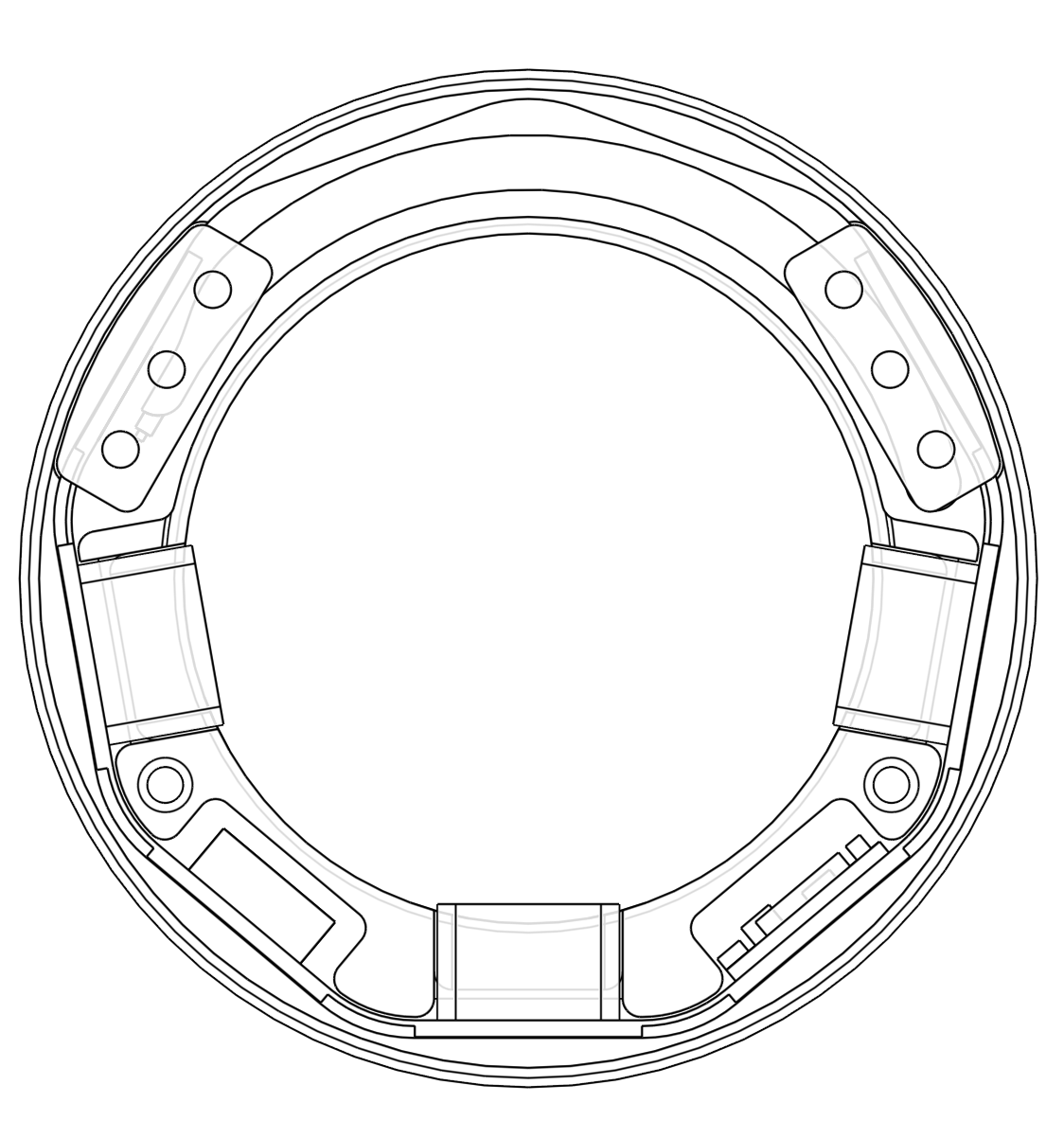

A full-featured wireless smart ring delivering high-fidelity, wide-bandwidth piezoelectric haptics to the fingertip. By tightly coupling miniature TDK piezoelectric actuators with ultra-compact tile-based drive electronics, the ring enables experiences ranging from enhanced bare-finger touchscreen interactions and dynamic haptic textures on natural surfaces to discrete, contextually-aware notifications. A high-speed 9-DOF inertial sensor (accelerometer, gyroscope, magnetometer) provides real-time motion and orientation data, while BLE 5.4 handles wireless control and data streaming.
Included Tiles
Applications
- Everyday wearables with haptic feedback
- xR (AR/VR/MR) interaction and control
- Vehicle and cockpit interfaces
- Enhanced touchscreen interactions
- Augmenting natural surfaces with dynamic textures
- Discrete, contextually-aware notifications
Wireless Haptic Stylus
Android-compatible stylus · Haptics · BLE
An Android-compatible stylus providing real-time naturalistic haptic feedback. The stylus adds rich haptic effects to tablet, phone, and PC interfaces, augments natural surfaces with haptic cues, and delivers rich yet discrete notifications. A built-in 9-DOF inertial sensor provides motion and orientation data, while BLE handles wireless connectivity and a real-time haptic rendering engine drives high-bandwidth haptic output.
Included Tiles
Applications
- Writing & note-taking
- Graphical arts & illustration
- Improved UI accessibility
- Augmenting natural surfaces with haptic cues
- Rich, discrete notifications
