Power.L1.N
1C Li-Ion charge manager w/ 1.8 & 3.3V out

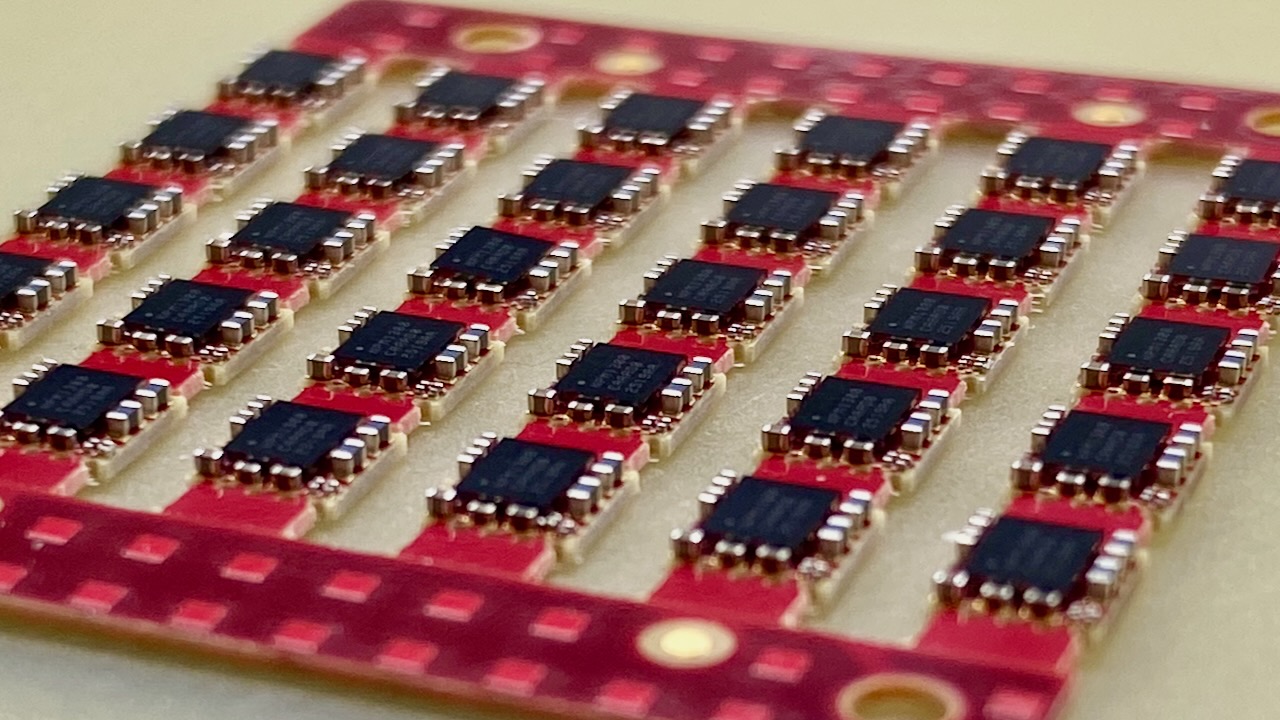

Single-cell Li-ion/Li-poly/LiFePO₄ battery charging and power management tile built around the Nordic nPM1300 PMIC. Provides both 1.8V and 3.3V regulated outputs via high-efficiency buck converters rated to 200mA each. An unregulated VSYS rail is also available for loads that require direct battery voltage or higher current. USB-C power input with CC pins exposed for connection detection. Supports charging currents from 32 to 800 mA for batteries up to 1000 mAh, and has three on-board LEDs for state observation.
Product Info
- Status
- Beta
- In Stock
- 0
- Pricing
Qty Each 1+ $12.00 10+ $10.80 50+ $10.20
Resources & Links
- Datasheet
- Download PDF
- JSON Tile Definition
- v0.4 (Feb 17, 2026)
- Drivers
- GitHub
- Discussion
- Discord
Application Notes
Battery charging
Battery charging, if desired, must be enabled via firmware.
LEDs
Three onboard LEDs (red, yellow, green) driven by the nPM1300's LED outputs provide visual indication of charging and system status. Red is connected to LED0 (default = error reporting), yellow to LED1 (default = charge indication), and green to LED2 (default = host control). The LED outputs must be enabled via firmware.
CC pads for USB C
The two CC pads can be connected to the CC lines of a standard USB C input to detect the source power capability. They have internal 5.1k pull-down resistors to conform to the standard for a sink device. Upon connection and detection, the source capability is reported in the USBCDETECTSTATUS register.
Charging Current
The default charging current limit is set to 100mA, and can be adjusted via firmware.
Pad Assignments
| Pad | Type | Function | Note | |
|---|---|---|---|---|
| 1 | ⏻ | GND | common ground for the charger, battery, and output | |
| 2 | CC1 | |||
| 3 | CC2 | |||
| 4 | I2C | CLK | ||
| 5 | I2C | DAT | ||
| 6 | ⏻ | CHG | charger input | |
| 7 | ⏻ | BATT | battery positive terminal | |
| 8 | ⏻ | VSYS | system output voltage | |
| 9 | ⏻ | 3V3 | normally-on 3.3V buck output | |
| 10 | ⏻ | 1V8 | normally-on 1.8V buck output |
I2C
I2C- Mode
- slave
- Max Clock
- —
- Address
- 0x6B
- Format
- 7-bit address
| Function | Required | Pad(s) |
|---|---|---|
| I2C.CLK | No | 4 |
| I2C.DAT | No | 5 |
Development Product — This is an electronic development module intended for evaluation, prototyping, and integration into other designs by qualified engineers and developers. It is not a finished consumer product and has not been independently certified for FCC, CE, UL, or other regulatory compliance. The integrator of this module into a finished product is responsible for obtaining all necessary certifications. Not intended for use in life-support systems, safety-critical applications, or any application where failure could result in personal injury or property damage. See our Terms of Sale for full details.
